Overview

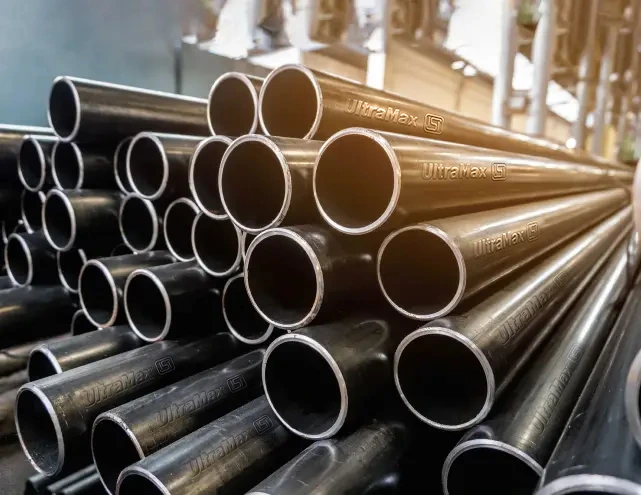

ULTRAMAX PIPES AND TUBES

Adukia Industries is pleased to present a comprehensive range of high-quality ERW Pipes & Tubes, suitable for conveying gas and liquids like oil and gas. These seamless pipes are longitudinally welded and formed from strip/coil to meet the most rigorous demands.

With a production capacity of up to 6 “OD, we offer our esteemed clients a wide variety of options to choose from.

Download Brochure

Specifications

SIZE CHART

ROUND PIPES
SQUARE PIPES
RECTANGULAR PIPES

NOMINAL BORE

OUTSIDE DIAMETER(mm)

WALL THICKNESS

KG/MTR

INCH

MINIMUM

MAXIMUM

SWG

25	1	33.3	34.2	1.40	17	1.12
		33.3	34.2	1.60	16	1.27
		33.3	34.2	1.80	15	1.42
		33.3	34.2	2.00	14	1.57
		33.3	34.2	2.20	13	1.70
		33.3	34.2	2.50	12	1.92
		33.3	34.2	2.80	11	2.13
		33.3	34.2	3.20	10	2.37

32	1.25	41.9	42.5	1.40	17	1.42
		41.9	42.5	1.60	16	1.62
		41.9	42.5	1.80	15	1.80
		41.9	42.5	2.00	14	2.00
		41.9	42.5	2.50	12	2.47
		41.9	42.5	2.80	11	2.75

40	1.5	47.8	48.4	1.40	17	1.63
		47.8	48.4	1.60	16	1.83
		47.8	48.4	1.80	15	2.08
		47.8	48.4	2.00	14	2.30
		47.8	48.4	2.20	13	2.50
		47.8	48.4	2.50	12	2.83
		47.8	48.4	2.80	11	3.17
		47.8	48.4	3.20	10	3.50

50	2	59.6	60.2	1.40	17	1.92
		59.6	60.2	1.60	16	2.33
		59.6	60.2	1.80	15	2.62
		59.6	60.2	2.00	14	2.90
		59.6	60.2	2.20	13	3.17
		59.6	60.2	2.50	12	3.57
		59.6	60.2	2.80	11	4.00
		59.6	60.2	3.20	10	4.50

65	2.5	75.3	76.6	2.00	14	3.67
		75.3	76.6	2.20	13	4.00
		75.3	76.6	2.80	11	5.17

DESIGNATION

DEPTH or WIDTH

THICKNESS

KG/MTR

mm X mm

25 X 25	25	1.40	1.12
	25	1.60	1.27
	25	1.80	1.42
	25	2.00	1.57
	25	2.20	1.70
	25	2.50	1.92
	25	2.80	2.13
	25	3.20	2.37

32 X 32	32	1.40	1.42
	32	1.60	1.62
	32	1.80	1.80
	32	2.00	2.00
	32	2.50	2.47
	32	2.80	2.75

38 X 38	38	1.40	1.63
	38	1.60	1.83
	38	1.80	2.08
	38	2.00	2.30
	38	2.20	2.50
	38	2.50	2.83
	38	2.80	3.17
	38	3.20	3.50

48 X 48	48	1.40	1.92
	48	1.60	2.33
	48	1.80	2.62
	48	2.00	2.90
	48	2.20	3.17
	48	2.50	3.57
	48	2.80	4.00
	48	3.20	4.50

60 X 60	60	2.00	3.67
	60	2.20	4.00
	60	2.80	5.17

DESIGNATION

DEPTH

WIDTH

THICKNESS

KG/MTR

mm X mm

50 X 25	50	25	1.40	1.63
	50	25	1.60	1.83
	50	25	1.80	2.08
	50	25	2.00	2.30
	50	25	2.20	2.50
	50	25	2.50	2.83
	50	25	2.80	3.17
	50	25	3.20	3.50

80 X 40	80	40	2.00	3.67
	80	40	2.20	4.00
	80	40	2.80	5.17
